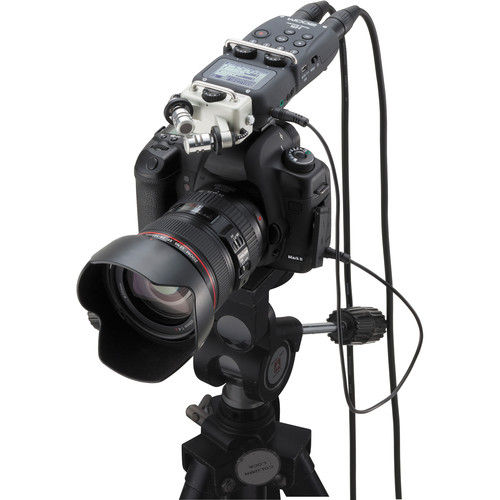

Sewa Zoom H5 Jakarta, Bekasi & Tangerang Selatan

Zoom H5

Rp 100.000

Portable Recorder

Number of Tracks	4
Maximum Sampling Rate	96 kHz / 24-Bit
Microphone	Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration
Built-In Speaker	Yes, 400 mW Mono
Display	Monochrome LCD (Backlit)
Memory Card Support	SD (16 MB to 2 GB) SDHC (4 to 32 GB)
Internal Storage	None

Recording

Audio File Formats	BWF, MP3, WAV
Sample Rates	WAV: 44.1 / 48 / 96 kHz (Stereo) MP3: 44.1 kHz
Bit Depth	16 / 24-Bit
Bit Rates	48 to 320 kb/s
Signal Processing & FX	Compressor, Limiter, Low-Cut Filter, Pitch Control
Timecode Support	No
Recording Time	WAV 44.1 kHz/16-Bit: 1 Hr 30 Min per GB (Stereo) MP3 320 kb/s: 7 Hrs per GB (Stereo)

Connectivity

Analog I/O	2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line/Mic Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Digital I/O	None
Phantom Power	+12 / 24 / 48 V (Selectable on Individual Inputs)
Plug-In Power	Yes, 2.5 V
Host Connection	1 x Mini-USB (USB 2.0)

Performance

Gain/Trim Range	X/Y Mic Capsule: Up to +52 dB 1/8" Inputs: Up to +52 dB Mic/Line Inputs: Up to +55 dB
Max Input Level	Mic/Line Inputs: +22 dBu (Pad On)
Headphone Output Power	20 mW per Channel into 32 Ohms
Impedance	1/8" / 3.5 mm Inputs: ≥2 Kilohms Mic/Line Inputs: ≥1.8 Kilohms Line Outputs: ≥10 Kilohms
EIN	≤-120 dBu
Microphone Sensitivity	-45 dB/Pa
Microphone Max SPL	140 dB SPL

Power

Power Options	Batteries, USB Bus Power, AC/DC Power Adapter
Battery Type	2 x AA
Approximate Battery Life	WAV 44.1 kHz/16-Bit: 15 Hours (Alkaline, 2 Channels) WAV 48 kHz/24-Bit: 7.2 Hours (Alkaline, All Channels)
AC/DC Power Adapter	5 VDC at 1 A (Not Included)

Physical

Mounting Options	1/4"-20 Female
Dimensions	2.6 x 1.7 x 5.3" / 66.8 x 42.1 x 135.2 mm (Recorder) 2.6 x 1.6 x 2.4" / 65.5 x 41 x 62.2 mm (X/Y Mic)
Weight	6.2 oz / 176 g (Recorder) 3.3 oz / 94 g (Mic)

INCLUDED
